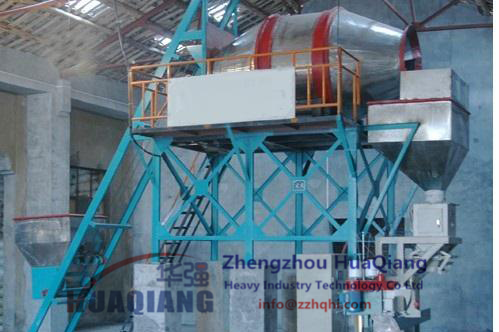

BB Fertilizer Production Line



This fertilizer granulation machine is designed and made according to the requirement of the compound fertilizer factories and fertilizer distributors, and the productivity is 10000---100000 tons.

Adopts the lifting tank to feed material and mixer to load the material, and almost reach zero waste material.

The main body is operated by forward or reverse movement, use the built in screw structure and three-dimensional structure to mix and convey the materials.

Features:

1.Ingredients precise: The batching system is computer-controlled and electronically weighed. According to a 50kg bag of BB fertilizer, nitrogen, phosphorus, potassium, and additives are measured independently in proportion. Each meter is designed more scientifically and more reasonable that according to the proportion of nitrogen, phosphorus, potassium, and additives. Because of the strict control of the ratio, the accuracy of ingredients can reach ± 0.2%.

2. Mix evenly: Due to the single-bag mixing, special internal screw mechanism and unique three-dimensional structure are used for material agitation and output, which not only prevents the shunting phenomenon of mixed finished products due to different proportions and particle sizes of chemical fertilizers, but also does not damage the original particle shape of the materials, it has the high mixing uniformity.

3. Accurate packaging: The mixed fertilizer will put the material into the package according to the set weight, and through the conveyor send to the sewing machine station, it will fold seam bag automatically and complete the quantitative packaging process, the packaging accuracy can reach ± 0.2%.

4. Unique craft: The unique anti-seismic device ensures the measurement accurately and it can work stably under the more complicated working conditions. And it uses the unique re-inspection conveyor sewing machine to carry out the secondary measurement on the weight of each bag.

5. Advanced technology: Combining advanced technology at home and abroad, the mixing speed of ingredients is fast and the time of contact with air is short, that’s not easy to cause the phenomena of water absorption of fertilizer.

6. Simple and practical: The instrument is simple to operate and easy to use. It can store multiple recipes, and can be set at any time as required, and can realize the automatic control use the electronic control device.

Advantages:

1.Using the single-bag mixed mixing method, that’s easy to control the material of each bag, and the mixing uniformity is high.

2.The spiral section design of the mixing section is reasonable and unique, stirring is even, and the material entering and discharging is rapid;

3. Computer automatic batching/ mixing /packaging in one, it uses the twist cage feeding method, and it has the small footprint, less labor and reduce the investment

4. The entire equipment is made of the stainless steel, it has the corrosion resistance, and the long service life.
