Overview
The fertilizer packaging machine is mainly used for automatic quantitative packaging of powder materials, such as, flour, starch, feed, food, chemical industry, light industry, building materials industries.
Features High precision: Choose high precision weighing controller, good reliability. Overall good, small footprint, flexible installation.
Speed adjustable: Feeding methods of powder type of equipment is the spiral feeding. Fast and slow feeding are controlled by controller and the speed can set at random.
Environmentally operation: sealing cyclical system, prevented from flying, improved working environment protected the health of staff.
Reasonable structure: Compact structure, small body, can make fixed or movable body machine according to user requirements.
Specification
| No. | Device Name | Technical parameters | DCS-25F |
| 1 | Computer quantitative scale | Weighing range (kg) | 10-25 |
| Weighing speed | 200-3000 | ||
| Permissible error | 0.20% | ||
| Equipped with power | 2.2KW | ||
| Air supply | 0.4-0.6Mpa,0.1m3/min | ||
| Weight (kg) | 500 | ||
| 2 | Weighing control instrument | GM8804C | |
| 3 | Folder bag body | Weight (kg) | 60 |
| 4 | conveyor | Conveying distance(m) | 2 |
| Equipped with power | 0.37 | ||
| Weight (kg) | 240 | ||

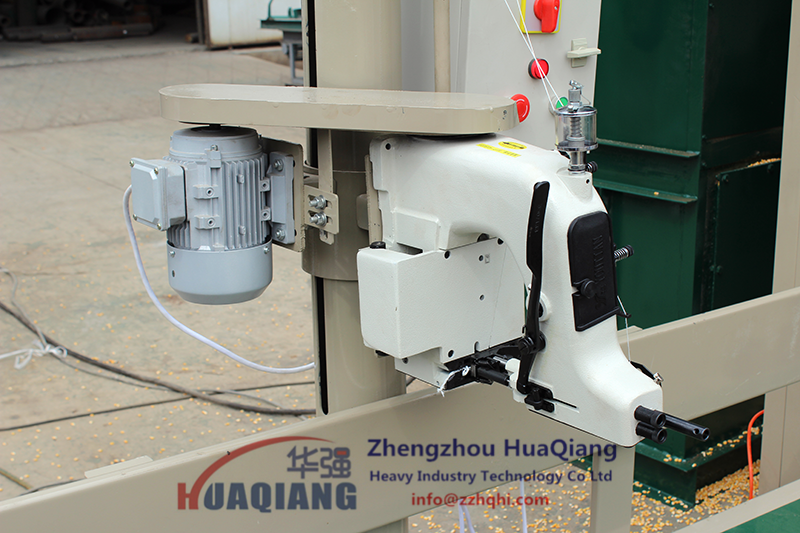

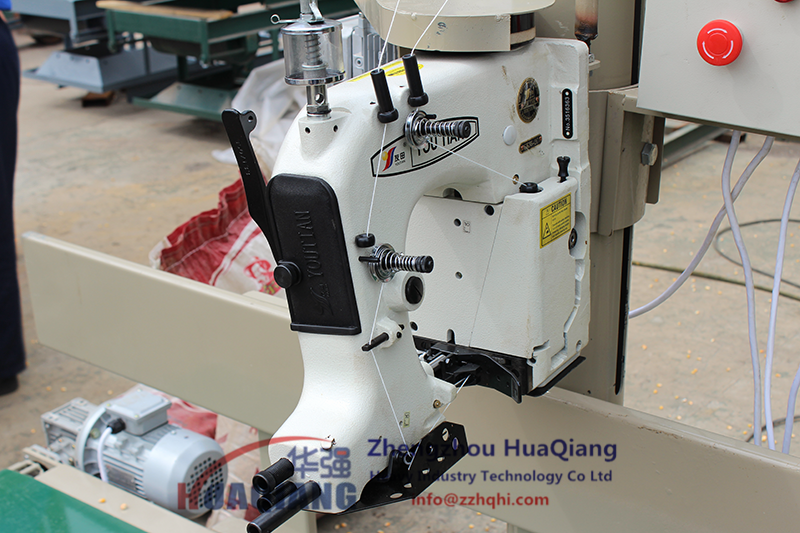

| 5 | hemming machine | Equipped with power | 0.55 |
| Weight (kg) | 100 | ||
| 6 | overall dimensions | Overall dimensions(mm) | 2332×1225×1058 |
| Weight (kg) | 450 |

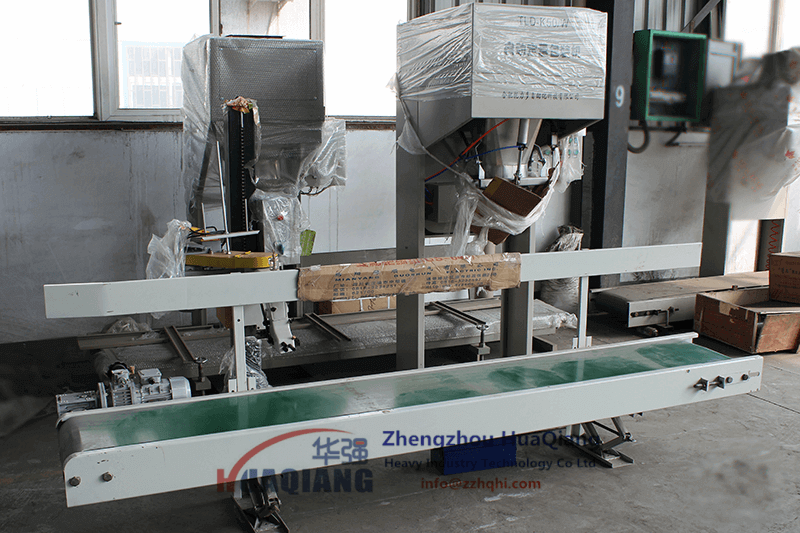

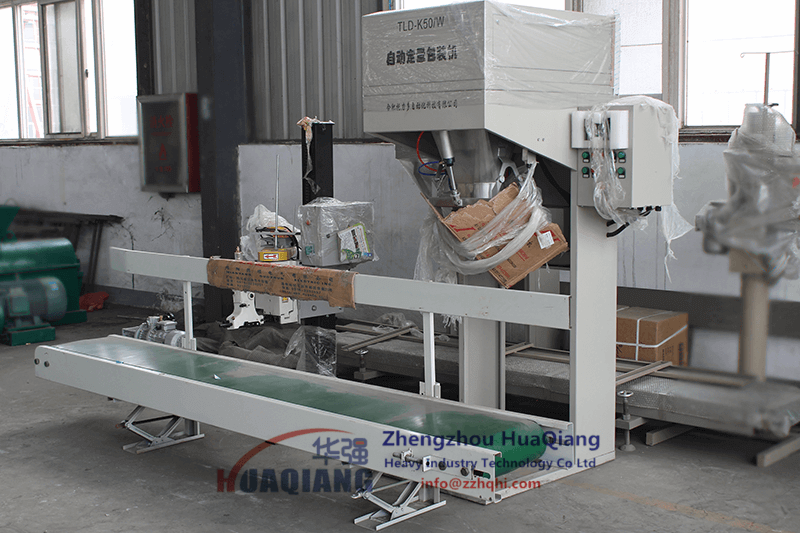

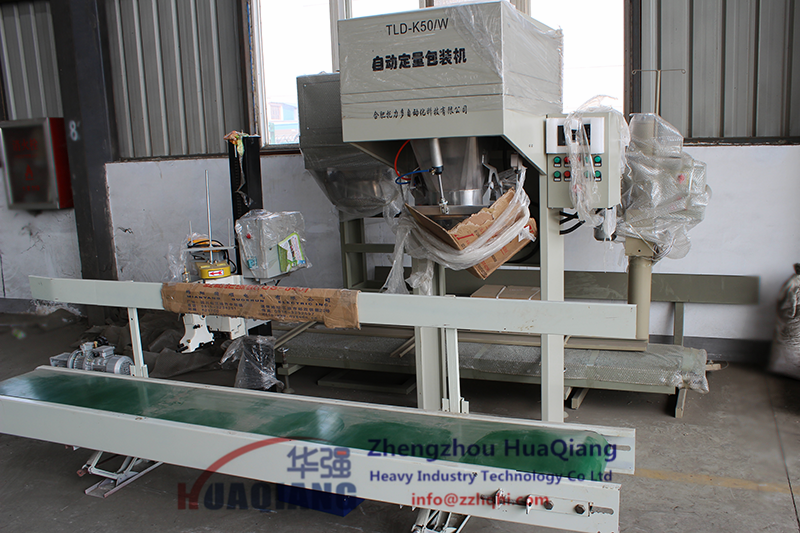

Appearance
