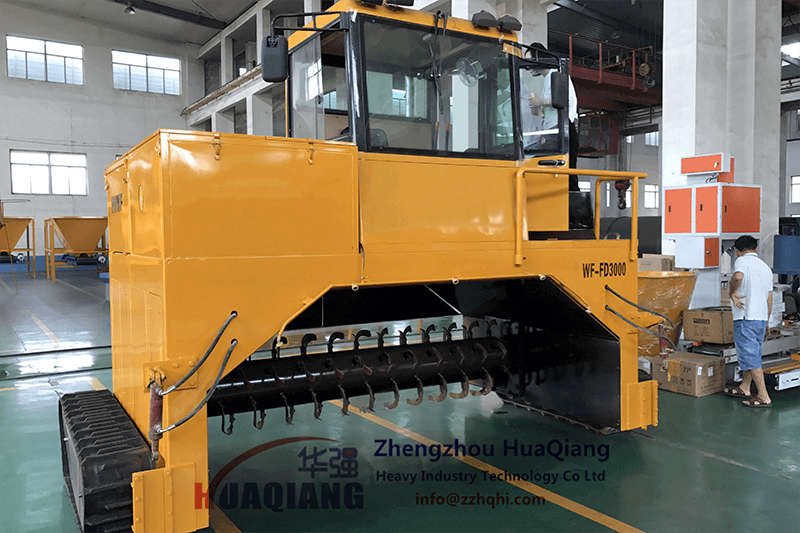

Apron Wheel Compost Turner

      This compost turner machine eliminates the hydraulic steering wheel type stacker. It is a new product owned exclusively by our company in the market.  And the compost turning equipment fills the market gap that the large scale wheeled composting equipment can not turn around in situ. No steering wheel required, the driver simply control two bars, then the windrow compost turner can turn left or right, brake and 180 degrees turn around. Hydraulic balance of steering wheel. The height of the composting machinery shaft can be automatically raised and lowered. The fertilizer pile can be forcibly turned or turned at high speed according to the moisture degree of the material.

      This compost windrow turner adopts soft start turning clutch (domestic similar products are used for iron to iron hard clutch, which will cause serious damage to chain, bearings and shaft). Equipped with front hydraulic push plate, without manual taking time to heap raw materials, drum hydraulic lifting, the windrow turner can greatly save the space, time, diesel, manpower and shorten the fermentation period.


3000mmRated power rotary speed2200r/min
Working height1000-1300mmWorking speed6-18m/min
Working row space0.8-1.0mRunning speed50m/min
Max diameter of material250mmProcessing capacity1000-1300m³/h
PowerHP diesel engineMachine size4.3*2.65*3.2m
