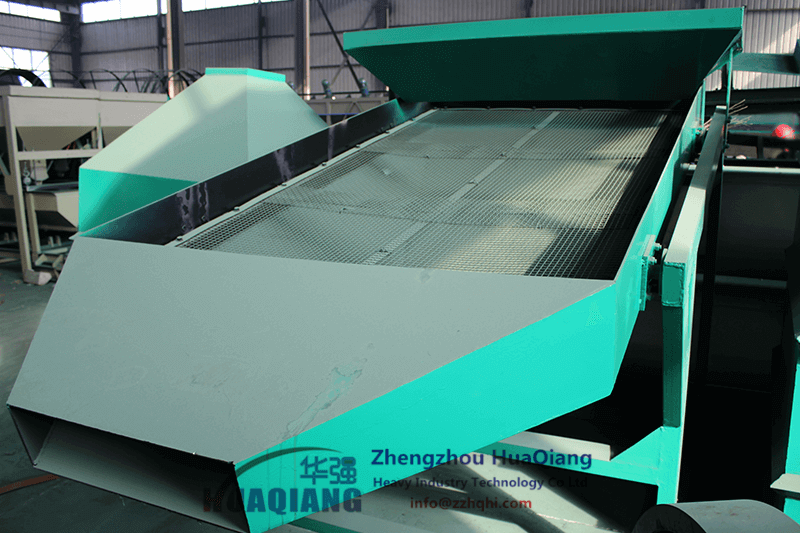

Fertilizer vibrating screener:
Vibrating screen machine is specially designed and developed for the screening compound fertilizer by our company, the screen body is divided into two types: single layer and double layers. The mesh is made of high quality manganese steel, so it’s simple structure and easy to operate. Mesh size can be selected according to your requirements.
The working principle of the vibrating screen machine:
Power from the motor through v-belt transmit to the vibrator driving shaft and gear vibrator (speed ratio is 1), to achieve three axis rotating with same speed and resulting in vibration force, vibration exciter connected with screen box by high strength bolt, resulting in elliptical motion. Materials on the sieve machine with high speed elliptical motion randomly, quickly stratified, through the screen, and move forward, and finally complete the classification of materials.
| Model | ZS1×3 | ZS1.2×4 | ZS1.4×5 |
| Screening area(m2) | 3 | 4.8 | 7 |
| Prod capacity(t/h) | 3-5 | 5-8 | 8-15 |
| Motor power(kw) | 1.5 | 2.2 | 1.5×2 |
| Vibration Frequency(r/min) | 960 | 960 | 960 |
| Amplitude | 4-6 | 4-6 | 4-6 |
| Dimensions, LxWxH | 3.4×1.5×2.7 | 4.1×1.6×3.8 | 5.4×1.7×4.1 |
| Equipment Quality | 1850 | 3500 | 4500 |
