Overview

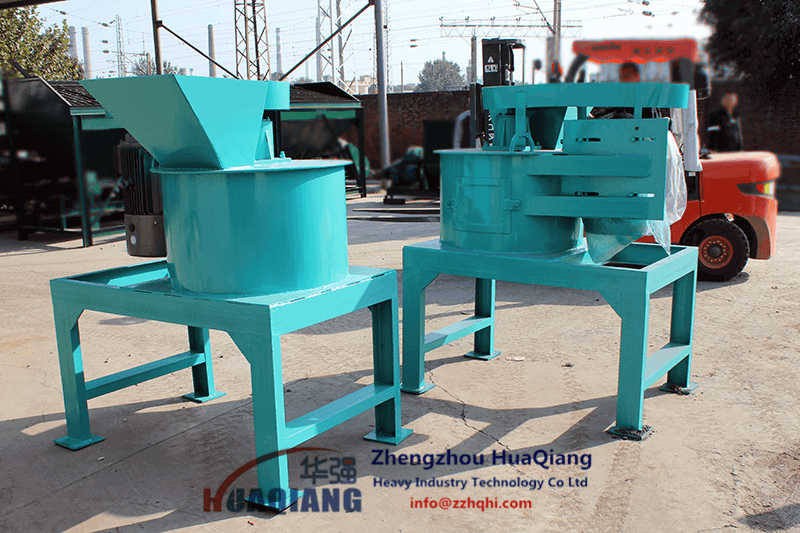

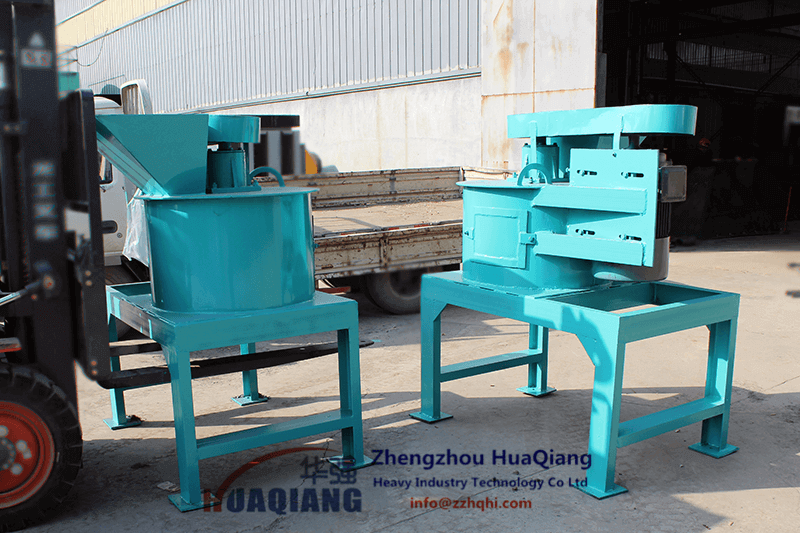

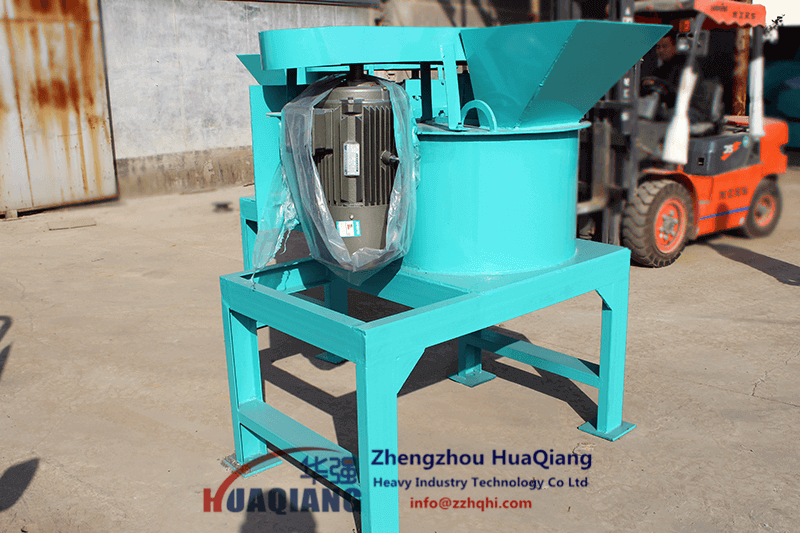

Chain fertilizer crusher is suitable for the fragmentation of organic fertilizer and compound fertilizer blocks during production process, also widely used in chemical, building materials, mining and other industries. In the process of crushing, we use synchronous speed of high-strength wear-resistant carbide chain plate, inlet and outlet design is reasonable, so that broken material uniformly, uneasy to stick wall and easy to clean. This type crusher using the latest technology and high-quality steel, system optimization design, so it is of large yield and high reliability.
The function and structure
The chain crusher can be divided into two structural forms: vertical chain crusher and horizontal chain crusher. The vertical chain crusher is equipped with single rotor and horizontal chain crusher the double rotor.
The main working part of the chain crusher is a rotor with a steel ring chain, one end of the chain connected with the rotor, the other end of the chain equipped with a wear-resistant steel chain head. The chain crusher is a type of impact crusher, which broken the blocks by the impact of the chain at high speed. The chain crusher has the advantages of reasonable structure, fast feeding, stable performance and strong shock resistance. It can be widely used for crushing fiber materials like leaves, bagasse, broken bamboo, wood chips, waste paper, etc. and other hard objects like broken bricks, tiles, gravel, cinder, etc. No matter soft objects or hard objects will not affect the crushing effect.
| Maximum size of entering graule (mm) | Size after crushing | Motor power | Prod capacity | |
| LP500 | ≤60 | <Φ0.7 | 11 | 1-3 |
| LP600 | ≤60 | <Φ0.7 | 15 | 1-5 |
| LP800 | ≤60 | <Φ0.7 | 15 | 2-8 |
