Introduction

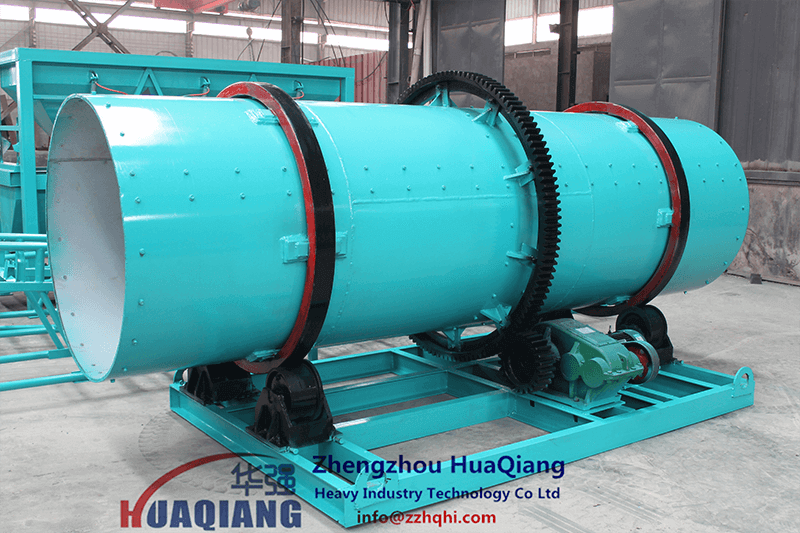

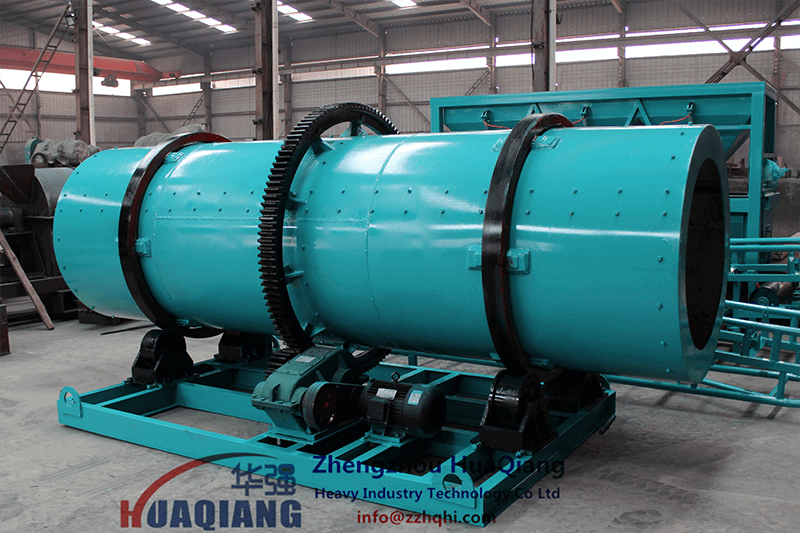

A whole set of gyratory coating machine is made up by the screw conveyor equipment, mixing tanks, oil pumps and host etc, with the powder or liquid coating process. It can effectively prevent the agglomeration of compound fertilizer. The machine is made by acid stainless steel lining or polypropylene. According to process requirements, the internal structure is specially designed to be effective fertilizer equipment
Features
1.The adoption of powder spraying technology or liquid coating technology has made this coating machine helpful to prevent compound fertilizers from clotting.
2. Its mainframe adopts polypropylene lining or acid-resistant stainless steel lining plate.
3. According to special technological requirements, this rotary coating machine is designed with a special inner structure, so it is effective and special equipment for compound fertilizers.
| Barrel | Prod Capacity | Power | ||||
| Internal Diameter | Length | Inclination | Rotation speed | |||
| mm | mm | mm | ° | r/min | t/h | kw |
| BM1200×4000 | 1200 | 4000 | 3 | 14 | ~5 | 5.5 |
| BM1400×4000 | 1400 | 4000 | 3 | 13 | ~7 | 7.5 |
| BM1600×6000 | 1600 | 6000 | 3 | 12 | ~15 | 11 |
| BM1800×8000 | 1800 | 8000 | 3 | 12 | ~30 | 15 |
