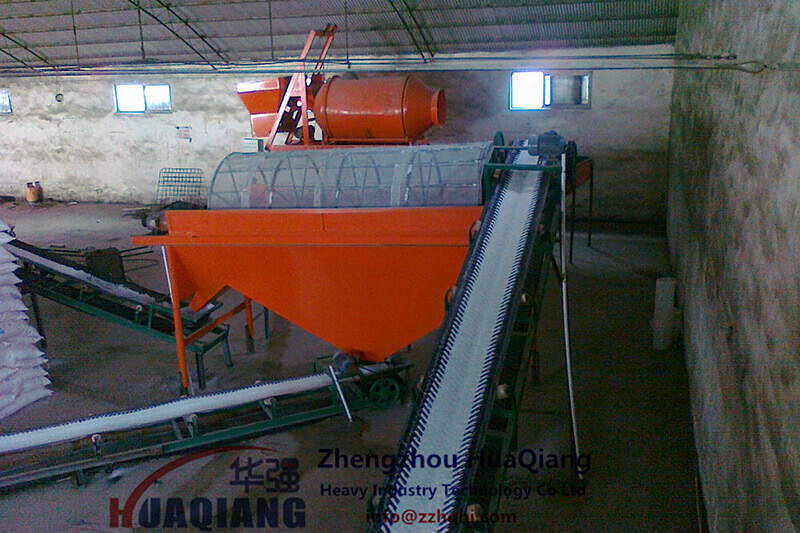

The movable lifting belt conveyor works the same as the ordinary belt conveyor. It is a continuous conveyor with a belt as a traction carrier. Compared with the ordinary belt conveyor, the movable lifting belt conveyor has been added moving device and lifting device, so the mobile lifting conveyor belt has excellent mobility performance. It can be pushed or pulled by forklift and other power locomotives to some appropriate location for loading and unloading goods according to the field situation.
Applicable to transport bulk materials or box bag items in coal, metallurgy, mining, chemical industry, building materials, wharf, warehouse, construction sites and other industries, especially suitable for manual loading environment such as chemical plants, cement plants and so on, which help to save a large number of working staff.
| Belt Width (mm) | Conveying length(m) Power(kw) | Conveying speed (m/s) | Delivery quantity (t/h) | ||
| 500 | ≤12 3 | 12-20 4-5.5 | 20-30 5.5-7.5 | 1.3-1.6 | 78-191 |
| 650 | ≤12 3 | 12-20 5.5 | 20-30 7.5-11 | 1.3-1.6 | 131-323 |
| 800 | ≤6 4 | 6-15 5.5 | 15-30 7.5-15 | 1.3-1.6 | 278-546 |
| 1000 | ≤10 5.5 | 10-20 7.5-11 | 20-40 11-22 | 1.3-2.0 | 435-853 |
| 1200 | ≤12 7.5 | 10-20 11 | 20-30 15-30 | 1.3-2.0 | 655-1284 |
