Overview

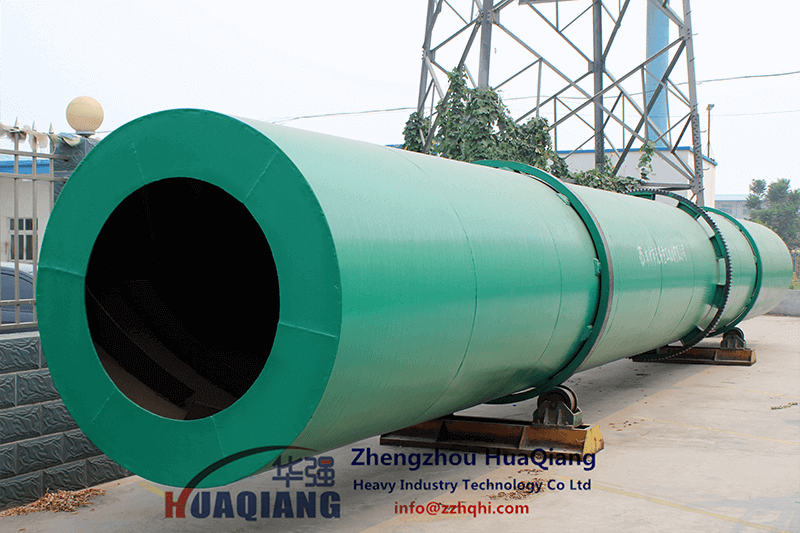

Rotary drum dryer is mainly used to produce compound fertilizer and dry fertilizers with a certain temperature and granularity. On the other hand, it also can be used for drying other materials.
The Angle and distribution of Jan plate of this machine is designed reasonable, and it is reliable in performance.
So its high thermal efficiency, uniform drying, cleaning fewer materials, convenient use and maintenance.
Specification
| Model | Shell | Produc capacity | Inlet temp ofhot air | Outlet temp ofhot air | Motor | Decelerator model | |||||
| Inner diam | length | inclination | Rotation speed | Model | Power | Rotation Speed | |||||
| mm | mm | 0 | r/min | t/h | °C | °C | |||||
| ZG12120 | 1200 | 12000 | 2-5 | 4.7 | 2-2.5 | 150-250 | 60-80 | Y160M-4 | 7.5 | 1460 | ZQ350 |
| ZG15120 | 1500 | 12000 | 2-5 | 5.0 | 4-6 | 150-250 | 60-80 | Y160L-4 | 15 | 1440 | ZQ400 |
| ZG15150 | 1500 | 15000 | 2-5 | 5.0 | 5-7 | 150-250 | 60-80 | Y160L-4 | 15 | 1440 | ZQ500 |
| ZG18150 | 1800 | 15000 | 2-5 | 3.9 | 7-10 | 150-250 | 60-80 | Y200L1-6 | 18.5 | 970 | ZQ500 |
| ZG20200 | 2000 | 20000 | 2-5 | 3.9 | 8-14 | 150-250 | 60-80 | Y200L2-6 | 22 | 970 | ZQ650 |
| ZG22220 | 2200 | 22000 | 2-5 | 3.2 | 12-16 | 150-250 | 60-80 | Y250M-6 | 37 | 980 | ZQ750 |
| ZG24240 | 2200 | 24000 | 2-5 | 3.0 | 14-19 | 150-250 | 60-80 | Y280S-6 | 45 | 970 | ZQ850 |
